| YJ2504 |
Screw - GKN - Parker Kalon 'J' Type - No. 10 x 1/2" Long Pan Head |
1 |
□ LHS
|
 |
|
|
1 |
| 145892 |
Cleat |
1 |
|
|
|
|
0 |
| 145892 |
Cleat |
1 |
□ RHS
|
|
|
|
0 |
| 152326 |
Hose |
1 |
|
|
|
|
0 |
| WL205 |
Washer - Lock No. 10 0.32" O/D |
1 |
□ LHS
|
|
|
|
1 |
| HU503 |
Hex Head Setscrew - No 10 UNF x 3/8" |
1 |
□ LHS
|
|
|
|
1 |
| HN2005 |
Plain Hex Nut - No. 10 UNF 3/8" A/F 0.130"/0.117" Nom Thk |
1 |
□ LHS
|
|
|
|
1 |
| 519082 |
Grommet |
1 |
|
|
|
|
0 |
| 159272 |
Comp to Condenser Hose |
1 |
|
|
|
|
0 |
| 519082 |
Grommet |
1 |
|
|
|
|
0 |
| 152325 |
Dryer to Evaporator Hose Assembly |
1 |
|
|
|
|
0 |
| 153814 |
Hose Clip |
1 |
|
|
|
|
0 |
| 214984 |
Receiver / Dryer |
1 |
|
|
|
|
0 |
| 158914 |
Condenser to Dryer Hose Assembly |
1 |
|
|
|
|
0 |
| WP5 |
Plain Light Washer No. 10 x 0.44" OD |
2 |
|
|
|
|
1 |
| WL205 |
Washer - Lock No. 10 0.32" O/D |
1 |
|
|
|
|
1 |
| HN2005 |
Plain Hex Nut - No. 10 UNF 3/8" A/F 0.130"/0.117" Nom Thk |
1 |
|
|
|
|
1 |
| PT507 |
Setscrew - Pan Head (Binding) - Size Unknown |
1 |
|
|
|
|
1 |
| 625536 |
Lock Nut, Plastic |
1 |
|
|
|
|
0 |
| YJ2504 |
Screw - GKN - Parker Kalon 'J' Type - No. 10 x 1/2" Long Pan Head |
1 |
|
|
|
|
1 |
| 151975 |
Reciever / Dryer Mounting Bracket |
1 |
|
|
|
|
0 |
| 604948 |
Grommet |
1 |
|
|
|
|
0 |
| 604948 |
Grommet |
1 |
|
|
|
|
0 |
| 152336 |
Condenser Fan Assembly |
1 |
|
|
|
|
0 |
| 308543 |
Condenser Assembly |
1 |
|
|
|
|
0 |
| 311541 |
Condenser Motor Mounting Bracket |
1 |
|
|
|
|
0 |
| 153228 |
Spring Clip |
1 |
|
|
|
|
0 |
| 159557 |
Support Bracket |
2 |
|
|
|
|
0 |
| UKC1164 |
Motor Fan Brake LH |
1 |
|
|
|
|
0 |

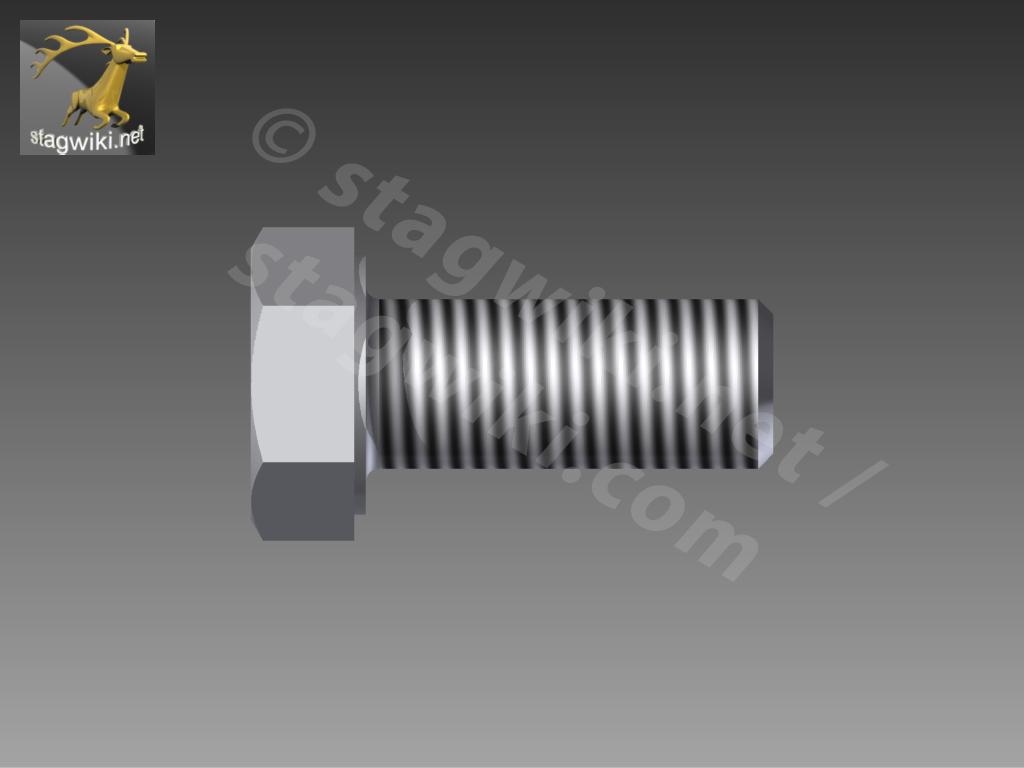

| HB806 |
Hex Head Bolt 5/16" UNF x 3/4" |
4 |
|
 |
|
|
1 |
| WP8 |
Plain Light Washer ID 5/16" OD 0.69" |
8 |
|
|
|
|
1 |
| WL208 |
Spring Washer ID 5/16" OD 0.58" |
4 |
|
|
|
|
1 |
| HN2008 |
Plain Nut 5/16" UNF 1/2" AF 0.270"/0.260" Nom Thickness |
4 |
|
|
|
|
1 |
| 218555 |
Mounting Bracket |
1 |
|
|
|
|
0 |
| WL207 |
Spring Washer ID 1/4" OD 0.58" |
4 |
|
|
|
|
1 |
| HU704 |
Hex Head Setscrew 1/4" UNF X 1/2" |
4 |
|
|
|
|
1 |
| WP5 |
Plain Light Washer No. 10 x 0.44" OD |
6 |
|
|
|
|
1 |
| HN2005 |
Plain Hex Nut - No. 10 UNF 3/8" A/F 0.130"/0.117" Nom Thk |
6 |
|
|
|
|
1 |
| WL205 |
Washer - Lock No. 10 0.32" O/D |
6 |
|
|
|
|
1 |
| 153055 |
Distance Tube |
6 |
|
|
|
|
0 |
| 153054 |
Grommet |
6 |
|
|
|
|
0 |
| WP5 |
Plain Light Washer No. 10 x 0.44" OD |
6 |
|
|
|
|
1 |
| HU505 |
Hex Head Set Screw - No. 10 UNF x 5/8" Long |
6 |
|
|
|
|
1 |

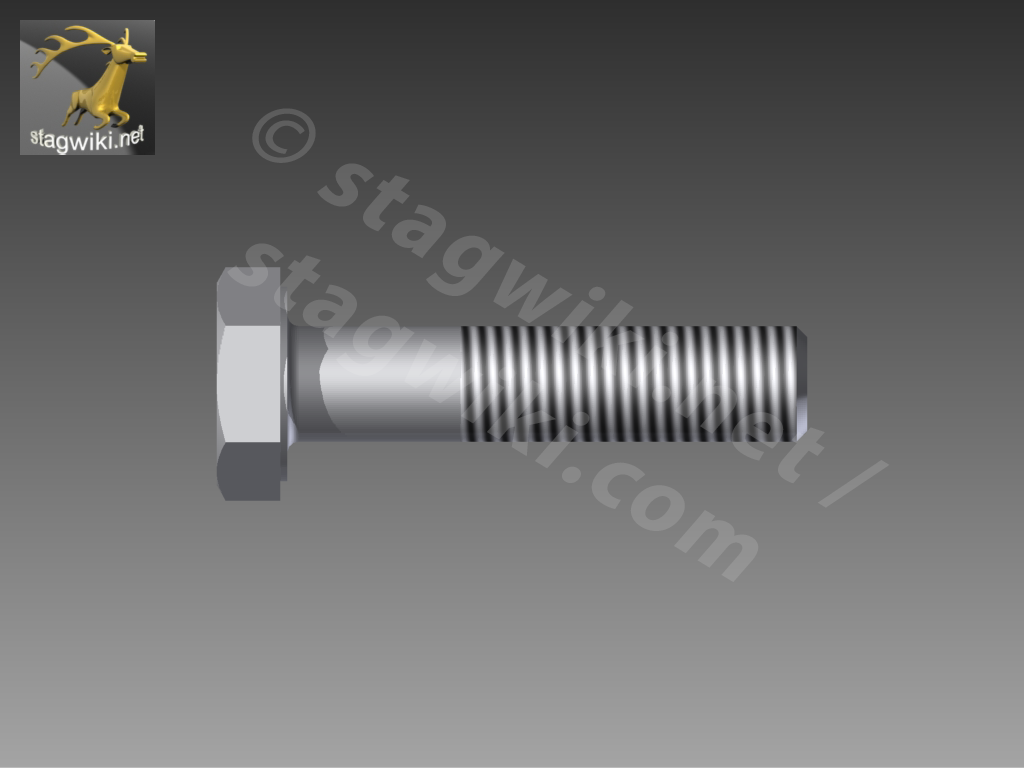

| HB709 |
Bolt 1/4" UNF x 1 1/8" |
1 |
|
 |
|
|
1 |
| WP7 |
Plain Washer - Light 1/4" ID x 0.63" OD |
1 |
|
|
|
|
1 |
| TN3207 |
Thin Nyloc Nut 1/4" UNF x 0.437" AF x 0.268" Thick |
1 |
|
|
|
|
1 |
| 218569 |
Mounting Assembly Bracket RH |
1 |
|
|
|
RH |
0 |
Next Page: 06-65
