| 819782 |
Front Registration Plate Plinth |
1 |
|
 |
|
|
0 |

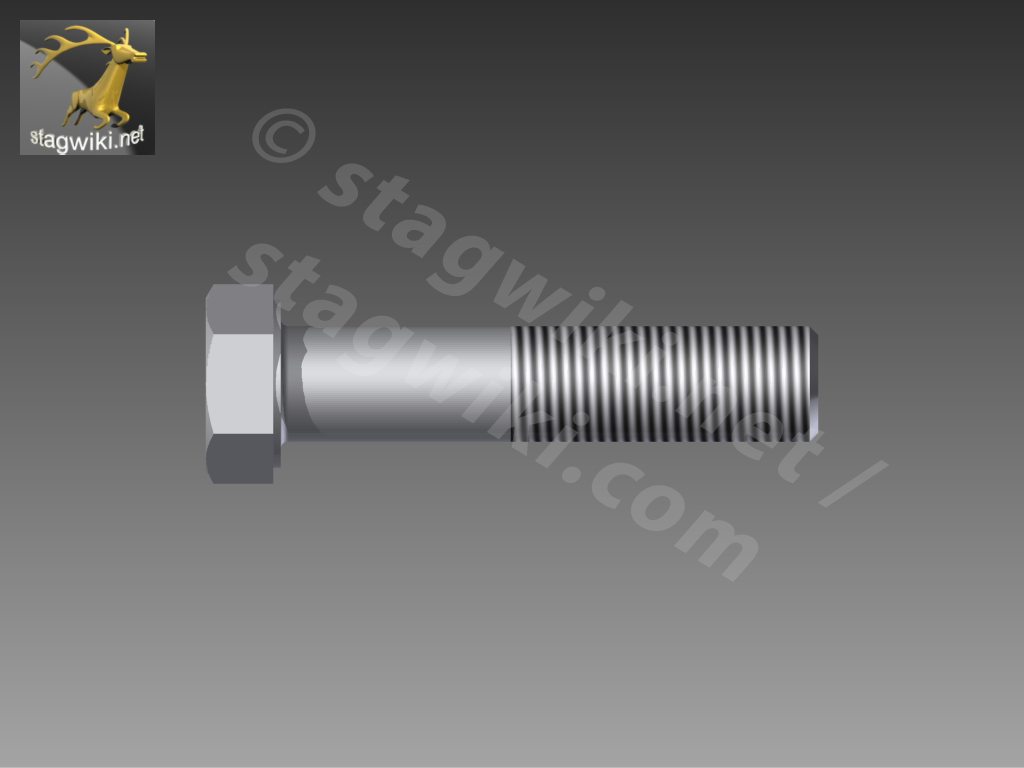

| HB914 |
Hex Head Bolt 3/8" UNF x 1 3/4" |
2 |
|
 |
|
|
1 |
| 907875 |
Front Bumper Assembly |
1 |
|
|
|
|
0 |
| 625665 |
Moulding Plinth |
1 |
|
|
|
|
0 |
| 626859 |
Nameplate |
1 |
|
|
|
|
0 |
| FR1202 |
Fix-Simmonds round type |
3 |
□ /4 finish
|
|
|
|
1 |
| 817251 |
Front Registration Plate Plinth Assembly |
1 |
|
|
|
|
0 |
| HN2007 |
Plain Nut 1/4" UNF 7/16" AF 0.220"/0.210" Nom Thickness |
2 |
|
|
|
|
1 |
| WL207 |
Spring Washer ID 1/4" OD 0.58" |
2 |
|
|
|
|
1 |
| WM57 |
Plain Medium Washer - 1/4"ID x 0.75"OD x 0.065" |
2 |
|
|
|
|
1 |
| 614209 |
Distance Piece |
2 |
|
|
|
|
0 |
| WQ309 |
Spring Washer - Square Section - 3/8"ID x 0.578"OD x 0.093 Thick |
2 |
|
|
|
|
1 |

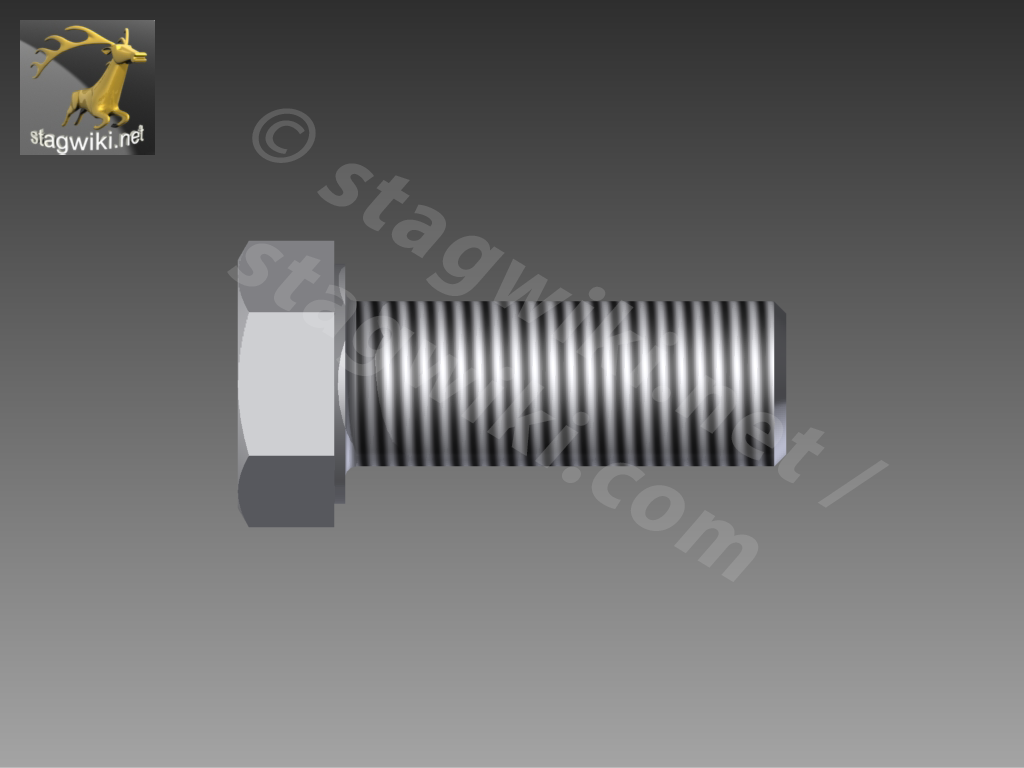

| HB908 |
Hex Head Bolt 3/8" UNF x 1" |
2 |
|
 |
|
|
1 |
| WP136 |
Plain Light Washer 3/8" ID x 1" OD |
2 |
|
|
|
|
1 |
| WP9 |
Plain Light Washer ID 3/8" OD 0.81" |
8 |
|
|
|
|
1 |
| WL209 |
Spring Washer ID 3/8" OD 0.68" |
4 |
|
|
|
|
1 |
| HN2009 |
Hex Nut 3/8" UNF x 9/16" AF 0.330/0.320 Thk |
4 |
|
|
|
|
1 |
| HN2009 |
Hex Nut 3/8" UNF x 9/16" AF 0.330/0.320 Thk |
4 |
|
|
|
|
1 |
| HU906 |
Hex Head Setscrew 3/8" UNF x 3/4" Long |
2 |
|
|
|
|
1 |
| WL209 |
Spring Washer ID 3/8" OD 0.68" |
2 |
|
|
|
|
1 |
| WP9 |
Plain Light Washer ID 3/8" OD 0.81" |
2 |
|
|
|
|
1 |
| 631190 |
Washer Rubber Bumpers |
2 |
|
|
|
|
0 |
| 614208 |
Bracket |
2 |
|
|
|
|
0 |
| WL209 |
Spring Washer ID 3/8" OD 0.68" |
2 |
|
|
|
|
1 |
| HU906 |
Hex Head Setscrew 3/8" UNF x 3/4" Long |
2 |
|
|
|
|
1 |
| HU908 |
Hexhead Set Screw 3/8" UNF x 1" |
4 |
|
|
|
|
1 |
| 577165 |
Spacer Front and Rear Bumper |
2 |
|
|
|
|
0 |
| CB6924 |
Carriage Bolt - size unknown |
2 |
|
|
|
|
1 |
| 713623 |
Overrider Assembly Buffer |
2 |
|
|
|
|
0 |
| 812224 |
Shell Overrider RH |
1 |
|
|
|
|
0 |
| 812223 |
Shell Overrider LH |
1 |
|
|
|
|
0 |
| 502577 |
Plain Washer |
2 |
|
|
|
|
0 |
| 502450 |
Screw |
2 |
|
|
|
|
0 |
| 608491 |
Moulding Buffer PVC |
4 |
□ See ZKC2771 for Alternative
|
|
|
|
0 |
| ZKC2771 |
Rubber Seal |
4 |
□ See 608491 for Alternative
|
|
|
|
0 |
| WP9 |
Plain Light Washer ID 3/8" OD 0.81" |
2 |
|
|
|
|
1 |
| WQ309 |
Spring Washer - Square Section - 3/8"ID x 0.578"OD x 0.093 Thick |
2 |
|
|
|
|
1 |
| 725026 |
Bracket Front Bumper RH |
1 |
□ USA
|
|
|
|
0 |
| 725025 |
Bracket Front Bumper LH |
1 |
□ USA
|
|
|
|
0 |
| 712760 |
Front Bumper Mounting Bracket |
2 |
|
|
|
|
0 |
