519579/D - 04-82 |
Next Page: 04-83
| Part Number | Description | Quantity | Additional Notes | Photo | Left or Right Hand Steering | Left or Right Hand | Appears in Stanpart Hardware Cat? |
|---|---|---|---|---|---|---|---|
| 152189 | Hydraulic RH Lock Pipe Assembly RHS Only? | 1 | □ Right Hand Up to LD24187 Home and European □ Missing from Parts Book Index. |
 |
1 | ||

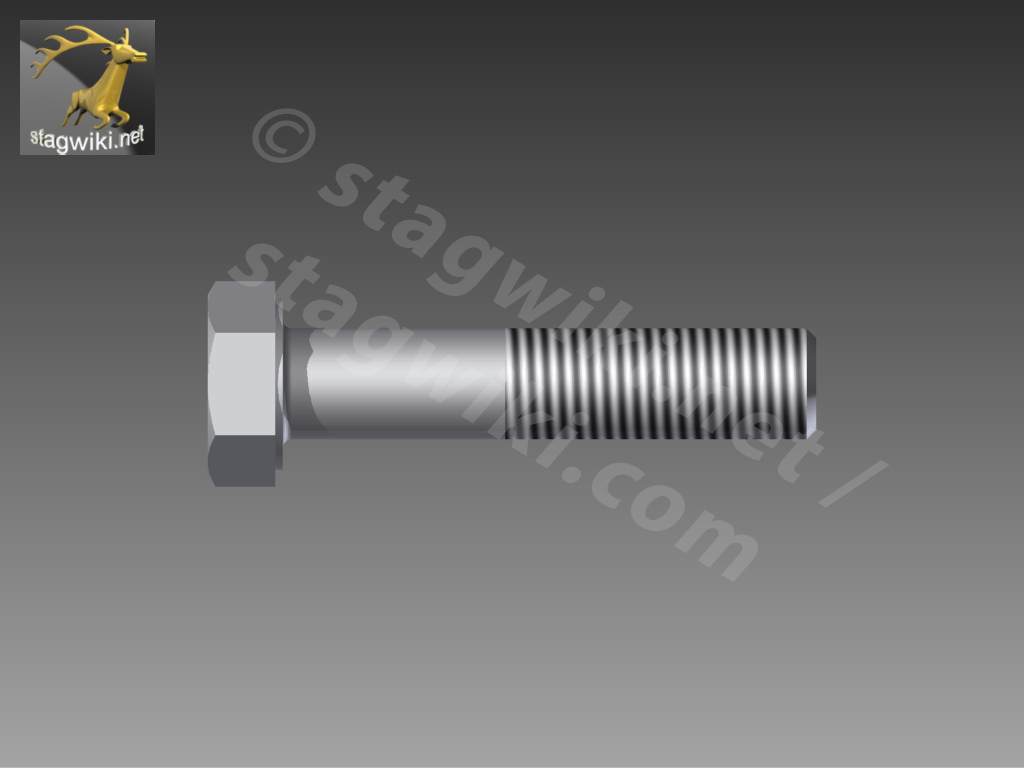

| HB812 | Hex Head Bolt 5/16" UNF x 1 1/2" | 1 |  |
1 | |||
| 151032 | Steering Shaft Assembly | 1 | |
0 | |||
| TN3208 | Thin Nyloc - 5/16" UNF 1/2" Across Flats 0.360" Thick | 2 | |
1 | |||
| WP8 | Plain Light Washer ID 5/16" OD 0.69" | 2 | |
1 | |||

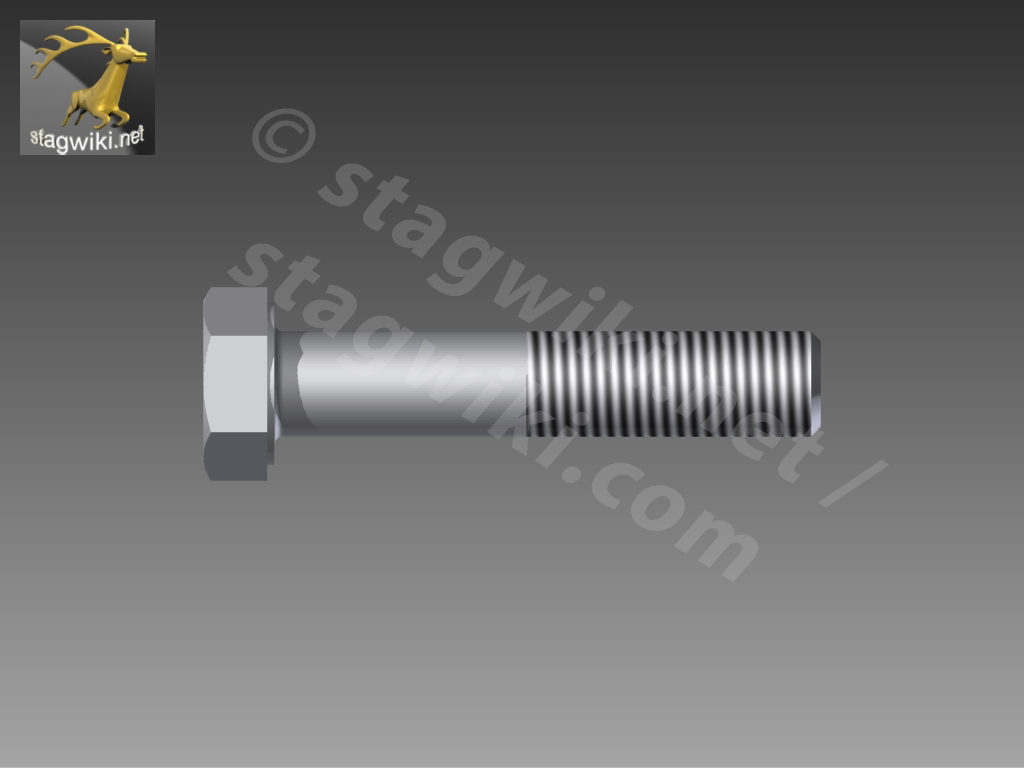

| HB813 | Hex Head Bolt 5/16" UNF x 1 5/8" | 1 |  |
1 | |||
| 150711 | Locating Plate | 2 | |
0 | |||
| 149431 | Bracket R.H. | 1 | □ Right Hand |
|
RH | 0 | |
| WP10 | Plain Light Washer 7/16" ID x 0.982" OD | 2 | |
1 | |||
| WL210 | Washer - Lock 7/16" ID x 0.78" O/D | 2 | |
1 | |||
| HU1009 | Hex Head Set Screw - 7/16" UNF x 1 1/8" | 1 | |
1 | |||
| 152192 | Hydraulic LH Lock Pipe Assembly LHS Only | 1 | □ Left Hand Up to LD23971 LHD Home and European |
|
LHS | LH | 0 |
| 157396 | Pipe Assembly Hydraulic LH Lock LHS | 1 | □ Left Hand From LD23971 Home and European |
|
LHS | LH | 0 |
| 157396 | Pipe Assembly Hydraulic LH Lock LHS | 1 | □ Right Hand From LD24187 Home and European |
|
LHS | LH | 0 |
| 152191 | Hydraulic RH Lock Pipe Assembly LHS Only | 1 | □ Left Hand Up to LD23971 Home and European |
|
LHS | RH | 0 |
| 152188 | Hydraulic RH Lock Pipe Assembly RHS Only | 1 | □ Right Hand Up to LD24187 Home and European |
|
RHS | RH | 0 |
| 157395 | Pipe Assembly HydraulicRH Lock LHS | 1 | □ Left Hand From LD23971 Home and European |
|
LHS | RH | 0 |
| 157394 | Pipe Assembly Hydraulic LH Lock RHS | 1 | □ Right Hand From LD24187 Home and European |
|
RHS | LH | 0 |
| 311978 | Rack and Pinion Assembly LHS | 1 | □ Left Hand Steering Up to LD23971 Home and European |
|
LHS | 0 | |
| 311977 | Rack and Pinion Assembly RHS | 1 | □ Right Hand Steering Up to LD24187 Home and European |
|
RHS | 0 | |
| RKC546 | Rack & Pinion Assembly LHS | 1 | □ Left Hand Steering From LD23971 Home and European |
|
0 | ||
| RKC545 | Rack & Pinion Assembly RHS | 1 | □ Right Hand Steering From LD24187 Home and European |
|
0 | ||
| TN3210 | Thin Nyloc Nut 7/16" UNF x 0.687" AF x 0.418" Thick | 4 | |
1 | |||
| WP8016 | Plain Light Washer Size Unknown | 4 | |
1 | |||
| HB1020 | Hex Head Bolt 7/16" UNC x 2 1/2" | 1 | |
1 | |||
| WP10 | Plain Light Washer 7/16" ID x 0.982" OD | 2 | |
1 | |||
| WL210 | Washer - Lock 7/16" ID x 0.78" O/D | 2 | |
1 | |||
| HU1009 | Hex Head Set Screw - 7/16" UNF x 1 1/8" | 2 | |
1 | |||
| 149430 | Bracket L.H. | 1 | □ Left Hand Up to LE23771 |
|
LH | 0 | |
| 156641 | Bracket LH | 1 | □ Right Hand From LE23771 |
|
LH | 0 | |
| 152193 | Air Transfer Pipe Assembly | 1 | □ Left Hand From LE23771 |
|
0 | ||
| 152190 | Air Transfer Pipe Assembly | 1 | □ Right Hand From LE23771 |
|
0 |
| Notes |
|---|
| No notes found for this page |
