| Part Number | Description | Quantity | Additional Notes | Photo | Left or Right Hand Steering | Left or Right Hand | Appears in Stanpart Hardware Cat? |
|---|---|---|---|---|---|---|---|
| 215159 | Rear Subframe Assembly LH | 1 | □ Left Hand □ Missing from Parts Book Index. |
 |
0 | ||
| WM813 | Plain Medium Washer - Inside Diameter 1/2" External Diameter 1" X 1/8"" | 4 | |
1 | |||
| YN2911 | Full Nyloc Nut - 1/2" UNF 3/4" Across Flats 0.603" Thick | 4 | |
1 | |||
| 138787 | Bolt | 4 | |
0 | |||
| WM803 | Plain Medium Washer - Inside Diameter 7/16" External Diameter 1" X 1/8" | 1 | |
1 | |||
| TN3210 | Thin Nyloc Nut 7/16" UNF x 0.687" AF x 0.418" Thick | 1 | |
1 | |||
| HB926 | Hex Head Bolt 3/8" UNF x 3 1/4" | 4 |  |
1 | |||
| 138635 | Support Bracket | 2 | |
0 | |||
| WP9 | Plain Light Washer ID 3/8" OD 0.81" | 4 | |
1 | |||
| YN2909 | Full Nyloc Nut - 3/8" UNF 9/16" Across Flats 0.485" Thick | 4 | |
1 | |||
| 215160 | Rear Sub Frame Assembly RH | 1 | □ Right Hand |
|
RH | 0 | |
| WP9 | Plain Light Washer ID 3/8" OD 0.81" | 4 | |
1 | |||
| YN2909 | Full Nyloc Nut - 3/8" UNF 9/16" Across Flats 0.485" Thick | 4 | |
1 | |||
| WM828 | Plain Medium Washer Size Unknown | 4 | |
1 | |||
| HB1042 | Hex Head Bolt 7/16" UNF x 5 1/4" (Extrapolated from Hardware Cat.) | 2 | |
1 | |||
| WP817 | Plain Light Washer Size Unknown Large! | 2 | |
1 | |||
| YN2908 | Nyloc Nut 5/16" UNF 1/2" Across Flats 0.438" Thick | 4 | |
1 | |||
| 138640 | Shim | 1 | □ As Required |
|
0 | ||
| HB1029 | Hex Head Bolt 7/16" UNF x 3 5/8" | 4 | |
1 | |||
| HB926 | Hex Head Bolt 3/8" UNF x 3 1/4" | 4 | □ See HB929 for Alternative |
|

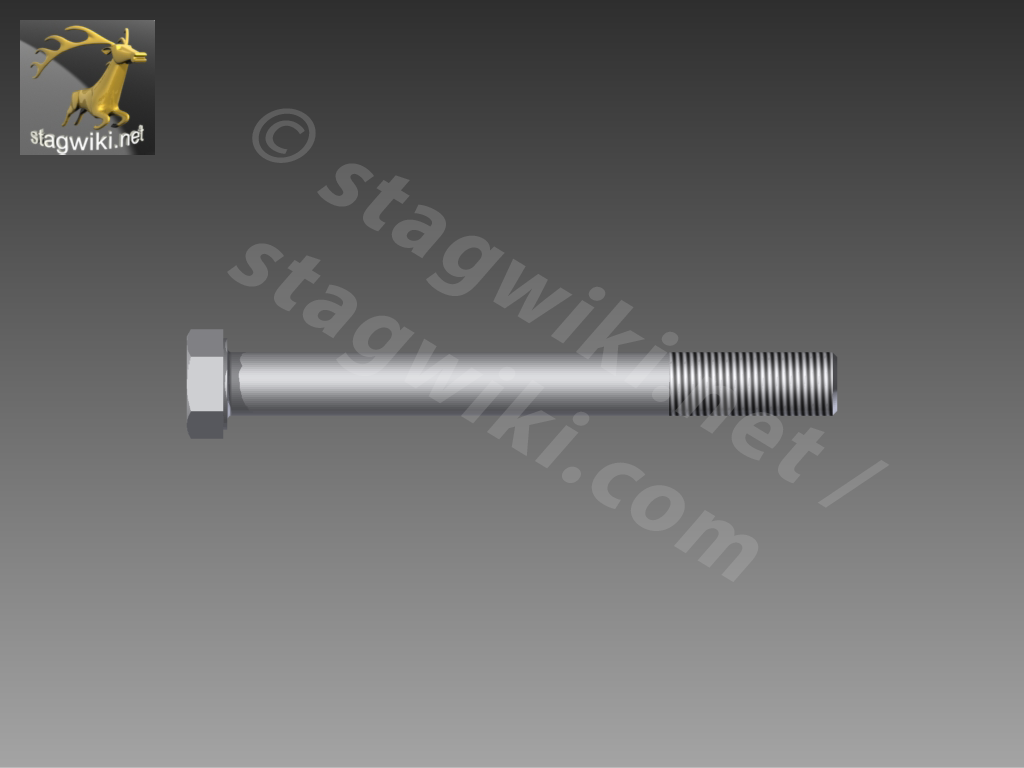

1 | ||
| HB929 | Hex Head Bolt 3/8" UNF x 3 5/8" | 4 | □ See HB926 for Alternative |
 |
1 | ||
| 138634 | Support Bracket | 2 | |
0 | |||
| 151361 | Washer Between Strap and Mounting | 2 | |
0 | |||
| YN2910 | Full Nyloc Nut - 7/16" UNF 11/16" Across Flats 0.543" Thick | 2 | |
1 | |||
| WM803 | Plain Medium Washer - Inside Diameter 7/16" External Diameter 1" X 1/8" | 4 | |
1 | |||
| 150382 | Mounting Rubber | 2 | |
0 | |||
| TN3210 | Thin Nyloc Nut 7/16" UNF x 0.687" AF x 0.418" Thick | 4 | |
1 | |||
| HU807 | Hex Head Set Screw - 5/16" UNF x 7/8" | 4 | |
1 | |||
| 625532 | Tapped Plate | 2 | |
0 | |||
| 151130 | Strap RH | 1 | □ Right Hand |
|
RH | 0 | |
| 151129 | Strap LH | 1 | □ Left Hand |
|
LH | 0 | |
| WP60 | Plain Light Washer Size Unknown | 2 | |
1 | |||
| WL210 | Washer - Lock 7/16" ID x 0.78" O/D | 2 | |
1 | |||
| HU1006 | Hex Head Set Screw - 7/16" UNF x 3/4" (Interpolated from Hardware Cat.) | 2 | |
1 | |||
| 138532 | Blanking Plug | 8 | |
0 | |||
| 137599 | Bush | 4 | |
0 | |||
| TD812 | Stud 5/16" UNF x Unknown | 12 | |
1 | |||
| 217001 | Trailing Arm Assembly LH | 1 | □ Left Hand Safety Item |
|
LH | 0 | |
| 217002 | Trailing Arm Assembly RH | 1 | □ Right Hand Safety Item |
|
RH | 0 |
