| TKC1000 |
Top Cover Assembly |
1 |
|
 |
|
|
0 |
| JN2108 |
Hexagon Jam Nut 5/16" UNF x 1/2" Across Flats x 0.190" / 0.180" Thick |
1 |
|
|
|
|
1 |
| WL208 |
Spring Washer ID 5/16" OD 0.58" |
1 |
|
|
|
|
1 |
| 160189 |
Gearbox Top Cover Steady Strap |
1 |
|
|
|
|
0 |
| HN2008 |
Plain Nut 5/16" UNF 1/2" AF 0.270"/0.260" Nom Thickness |
1 |
|
|
|
|
1 |
| WP8 |
Plain Light Washer ID 5/16" OD 0.69" |
1 |
|
|
|
|
1 |
| WL208 |
Spring Washer ID 5/16" OD 0.58" |
1 |
|
|
|
|
1 |
| HU704 |
Hex Head Setscrew 1/4" UNF X 1/2" |
2 |
|
|
|
|
1 |
| WL207 |
Spring Washer ID 1/4" OD 0.58" |
2 |
|
|
|
|
1 |
| 106051 |
Plate Cover |
1 |
|
|
|
|
0 |
| 106050 |
Sealing Ring |
3 |
|
|
|
|
0 |
| 122653 |
Screw Set |
1 |
|
|
|
|
0 |
| 127385 |
Reverse Gear selector |
1 |
|
|
|
|
0 |
| 136990 |
Reverse Selector Plunger |
1 |
|
|
|
|
0 |
| 106489 |
Spring |
1 |
|
|
|
|
0 |
| 109401 |
Distance Piece |
1 |
|
|
|
|
0 |
| 156665 |
Bucket Plug |
1 |
|
|
|
|
0 |
| 129780 |
Actuator |
1 |
|
|
|
|
0 |
| 122653 |
Screw Set |
1 |
|
|
|
|
0 |
| 129779 |
Reverse Select Sleeve |
1 |
|
|
|
|
0 |
| 209902 |
Reverse Selector Shaft |
1 |
|
|
|
|
0 |
| BL24 |
Steel Ball 3/8" Diameter |
1 |
|
|
|
|
1 |
| 155632 |
Spring |
1 |
|
|
|
|
0 |
| 156665 |
Bucket Plug |
1 |
|
|
|
|
0 |
| 122653 |
Screw Set |
1 |
|
|
|
|
0 |
| 127386 |
1st / 2nd Gear Selector Fork |
1 |
|
|
|
|
0 |
| 128066 |
Selector Shaft |
1 |
|
|
|
|
0 |
| 105788 |
Interlock Washer |
1 |
|
|
|
|
0 |
| BL24 |
Steel Ball 3/8" Diameter |
2 |
|
|
|
|
1 |
| 155632 |
Spring |
1 |
|
|
|
|
0 |
| 156665 |
Bucket Plug |
1 |
|
|
|
|
0 |
| 156373 |
SHaft Selector Assembly 3rd and Top |
1 |
|
|
|
|
0 |
| 127387 |
3rd/ Top Gear Selector Fork |
1 |
|
|
|
|
0 |
| 122653 |
Screw Set |
1 |
|
|
|
|
0 |
| 117811 |
Sleeve |
1 |
|
|
|
|
0 |
| 122653 |
Screw Set |
1 |
|
|
|
|
0 |
| 128063 |
1st / 2nd Shaft Sleeve |
1 |
|
|
|
|
0 |
| 128067 |
Selector Fork |
1 |
|
|
|
|
0 |
| 105758 |
Washer |
1 |
|
|
|
|
0 |
| 104449 |
Core Plug |
3 |
|
|
|
|
0 |
| WL208 |
Spring Washer ID 5/16" OD 0.58" |
2 |
|
|
|
|
1 |

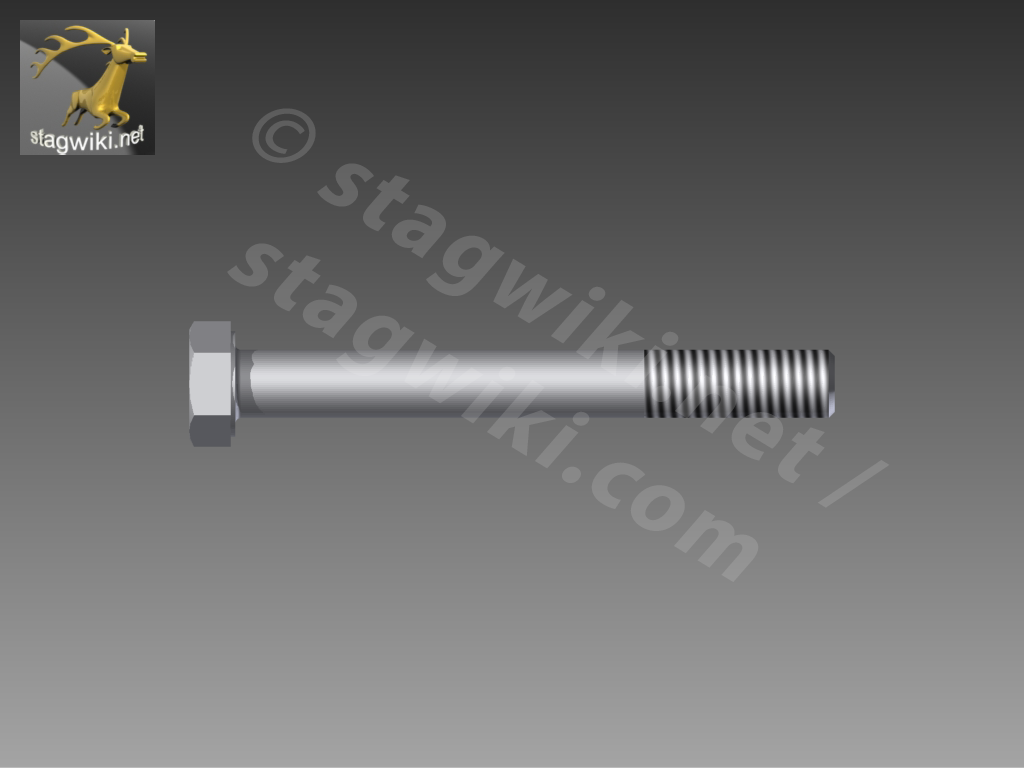

| HB872 |
Hex Head Bolt 5/16" UNC x 2 3/4" |
2 |
|
 |
|
|
1 |
| WL208 |
Spring Washer ID 5/16" OD 0.58" |
4 |
|
|
|
|
1 |
| 56370 |
Screw Set |
4 |
|
|
|
|
0 |
| WL208 |
Spring Washer ID 5/16" OD 0.58" |
2 |
|
|
|
|
1 |
| HB873 |
Hex Head Bolt 5/16" UNC x 2 7/8" |
2 |
□ See HB874 for Alternative
|
 |
|
|
1 |
| HB874 |
Hex Head Bolt 5/16" UNC x 3" |
2 |
□ See HB873 for Alternative
|
 |
|
|
1 |
| 54505 |
Core Plug |
2 |
|
|
|
|
0 |
| 104449 |
Core Plug |
1 |
|
|
|
|
0 |
Next Page: 02-72
