519579/D - 02-17 |
Next Page: 02-18
| Part Number | Description | Quantity | Additional Notes | Photo | Left or Right Hand Steering | Left or Right Hand | Appears in Stanpart Hardware Cat? |
|---|---|---|---|---|---|---|---|
| 213355 | Timing Chain RH | 1 |  |
RH | 0 | ||
| 143445 | Cam Bolt Lock Plate - shaft Timing Chain Wheels. | 1 | |
0 | |||
| HU704 | Hex Head Setscrew 1/4" UNF X 1/2" | 1 | □ Lock Plate to Camshaft Chainwheel |
|
1 | ||
| 149789 | Chainwheel Assembly Cawshaft | 1 | |
0 | |||
| 149787 | Chainwheel Pin | 1 | □ What's this for? |
|
0 | ||
| 145416 | Timing Chain Guide Spacer Missing from Parts Book Index |
1 | □ Spacer ued on Chain Guide 151831 |
|
RH | 0 | |
| 151831 | Chainwheel Guide Assembly | 1 | |
RH | 0 | ||
| 143257 | Crankshaft Chainwheel | 1 | |
0 | |||
| 143311 | Oil Thrower | 1 | □ Fits on Crankshaft |
|
0 | ||
| 144948 | Chainwheel Key | 1 | |
0 | |||
| 149452 | Chainwheel Guide Assembly | 1 | |
RH | 0 | ||
| 151830 | Spacer | 1 | □ Used with Chain Guide 149452 |
|
RH | 0 | |
| 145423 | Ring Dowel | 1 | □ Tensioner Spacer Block to Engine Block |
|
0 | ||
| 145422 | Timing Chain Tensioner Spacer Block | 1 | □ Incorrectly Described as 'Chainwheel Adjuster' In Parts Book Index |
|
0 | ||
| 151277 | Chain Adjuster Back Plate | 1 | □ Modern Versions are missing the hook shown in the parts book. This prevents the tensioner over extending and falling out! |
|
0 | ||
| 151089 | Timing Chain Tensioner | 1 | |
0 | |||
| HB709 | Bolt 1/4" UNF x 1 1/8" | 1 | □ Chain Tensioner to Block |
 |
1 | ||
| WL207 | Spring Washer ID 1/4" OD 0.58" | 2 | □ Chain Tensioner to Block |
|
1 | ||
| HB715 | Bolt 1/4" UNF x 1 7/8" | 1 | □ Chain Tensioner to Block |
 |
1 | ||

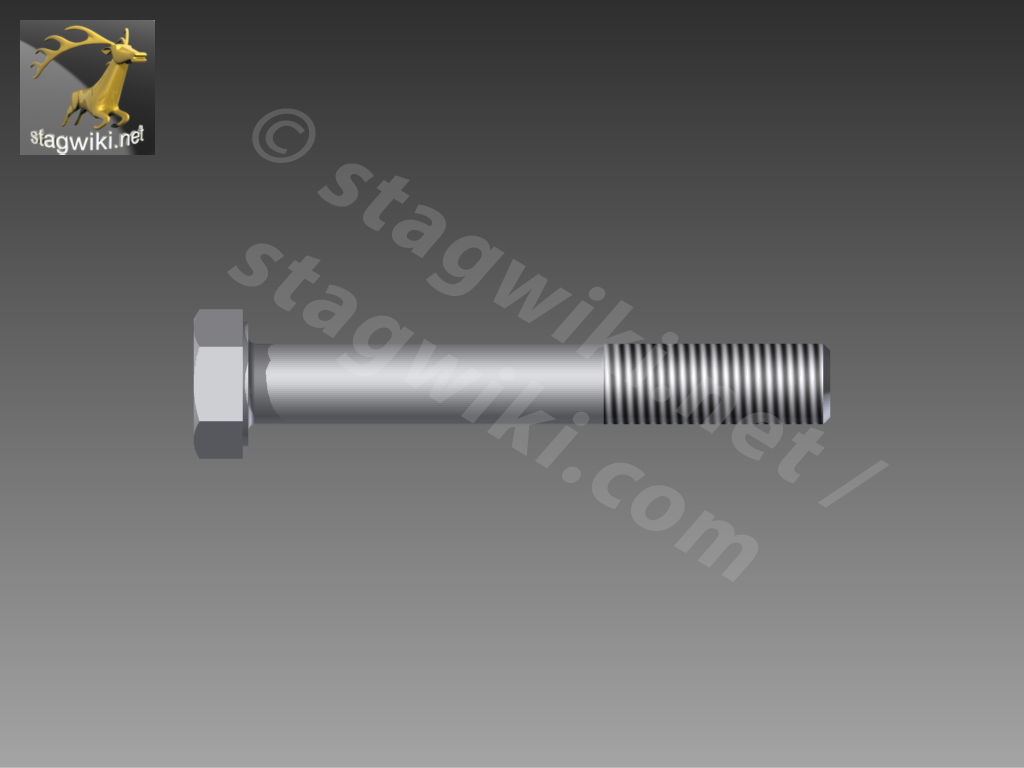

| HB818 | Hex Head Bolt 5/16" UNF x 2 1/4" | 3 | □ Chainwheel Support Bracket (215012) and Chain Follower (149452) to Engine Block |
 |
1 | ||
| 215012 | Chainwheel Support Bracket | 1 | |
RH | 0 | ||
| 149788 | Nut | 1 | □ Same as HN2008 (Cam Shaft Bearing Clamp Nut) |
|
0 |
